After months of development, the USB Tester 2.0 Bundle has arrived!
Currently available on Tindie and soon on Friedcircuits.us
USB Tester Bundle 2.0
USB Tester Backpack 2.0
The bundle includes both a new version of the Backpack and USB Tester. At this time, the new USB Tester is only available with the bundle.
New on Backpack
- Micro USB
- Button Location on the front left
- 128x64 OLED Display (Double height of the 1.x version, easier to source)
- Voltage monitoring of the USB Data lines
- Easier access to almost all the extra GPIO’s
New on USB Tester
- Micro USB
- Separated voltage test points (Easier to attach test clips and avoid misplacing jumper)
- Better labeling
- Standard Dual Banana spacing 0.75in
- Standard test probe sized test points
New Firmware Features (Will be available for 1.x version)

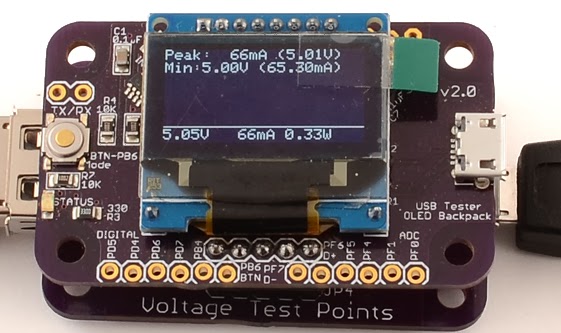

- Peaks

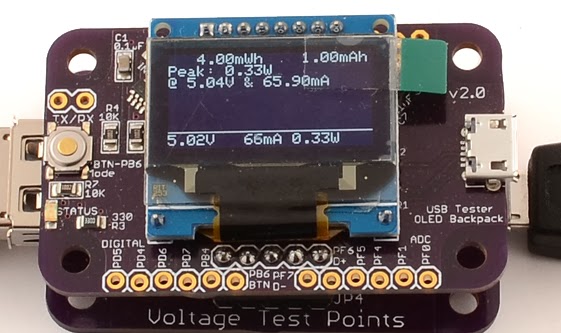

- mWh and mAh tracking

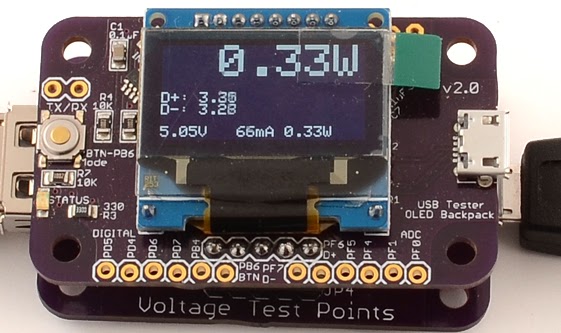

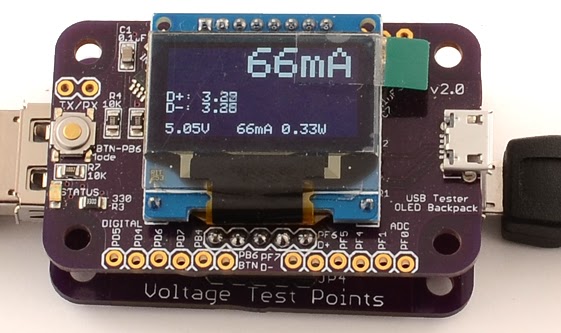

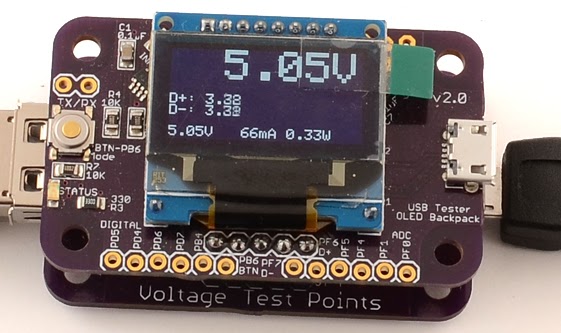

- Big Readout Display
- JSON for serial communications
Updated Java App (Beta)
- Implemented JSON over serial
- Will save as CSV
- Add display of new data values
- Working on graphing some of the new data
We’d like to thank Ed for all of his help and contributions.
