USB HUB + WiFi Teardown

wpsuperadmin teardown, usb Leave a Comment

One day I come across an interesting product from Adafruit that I couldn’t resist getting. It will make a nice addition to the Raspberry Pi Zero. It’s a 3 port USB hub with inbuilt WiFi which takes the fourth port. Inspired by insideGadgets, here are some photos and part numbers.

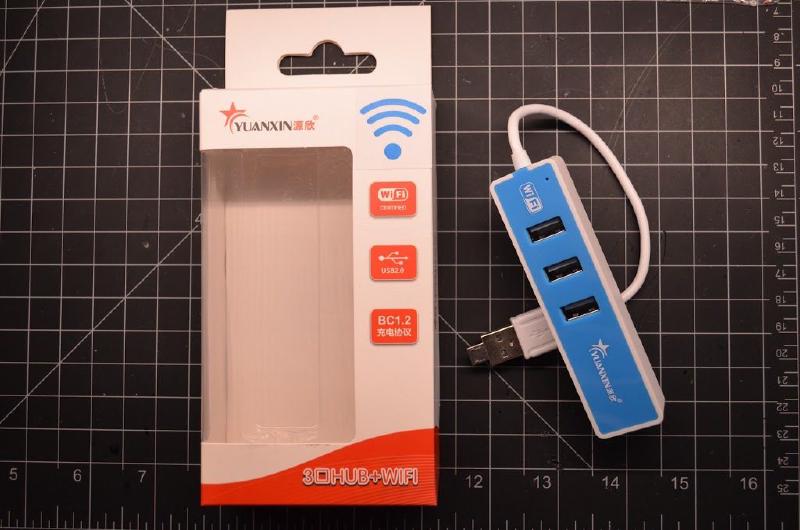

USB WiFi Hub

Wish it was a bit more compact. I have a USB to OTG adapter in the USB plug.

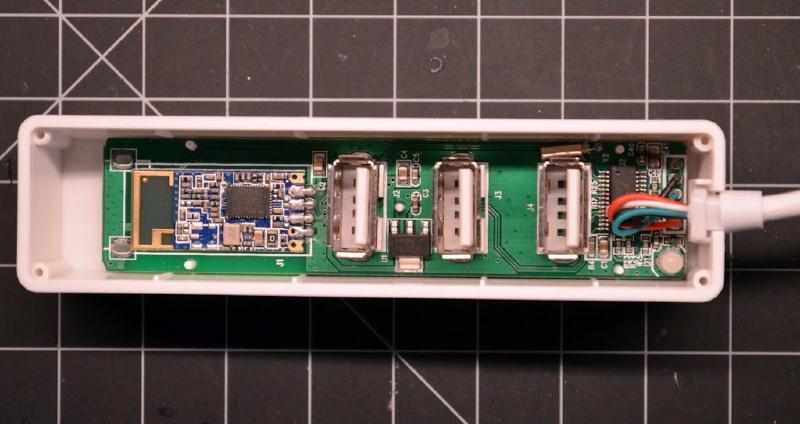

USB WiFi Hub Inside

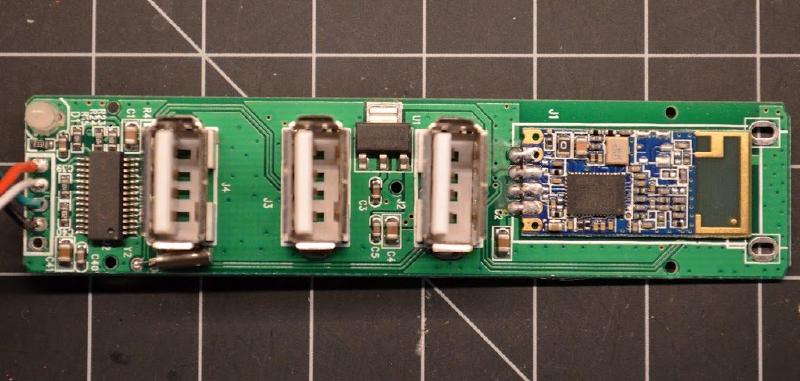

USB WiFi Hub PCB Top

Main Components

  • USB HUB – Terminus FE 1.1s
  • 3.3V Regulator – AMS1117
  • WiFi – Realtek RTL8188ETV

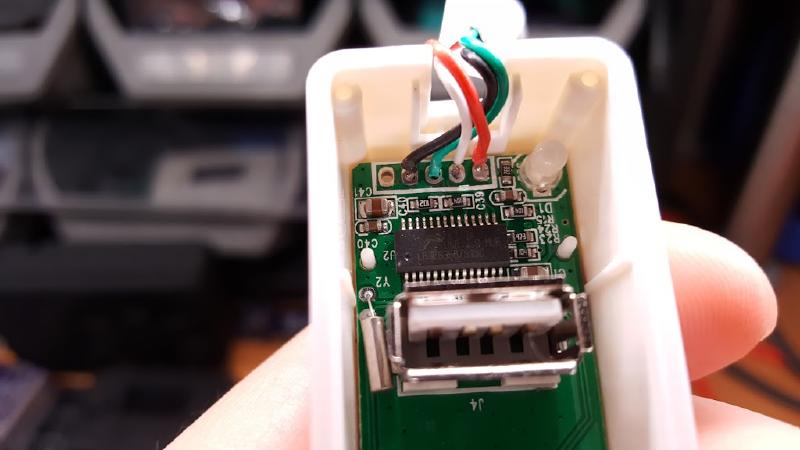

USB Wifi Hub IC

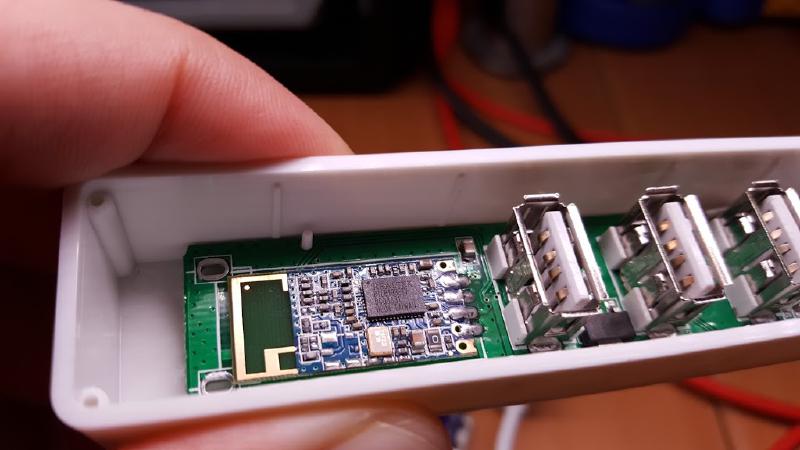

USB Wifi Hub WiFI

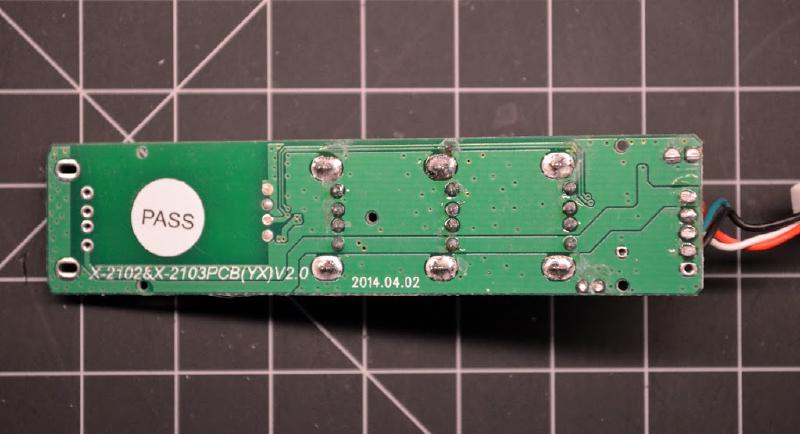

USB WiFi Hub PCB Bottom

Interesting thing to note is the fourth USB port footprint, this PCB can support the WiFi module or fourth USB port. Overall it is a simple design that would be easy to embed in another project without the housing.
